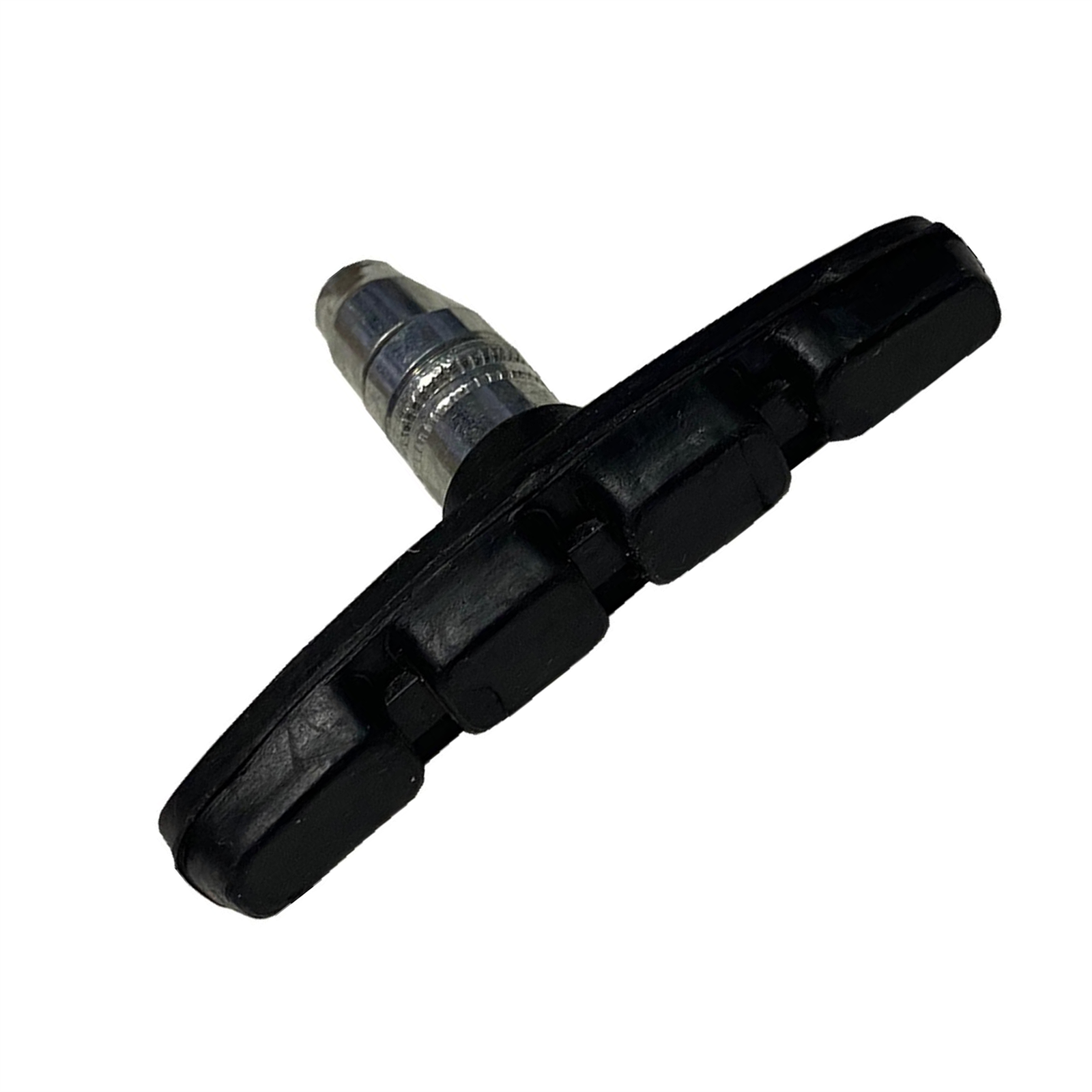

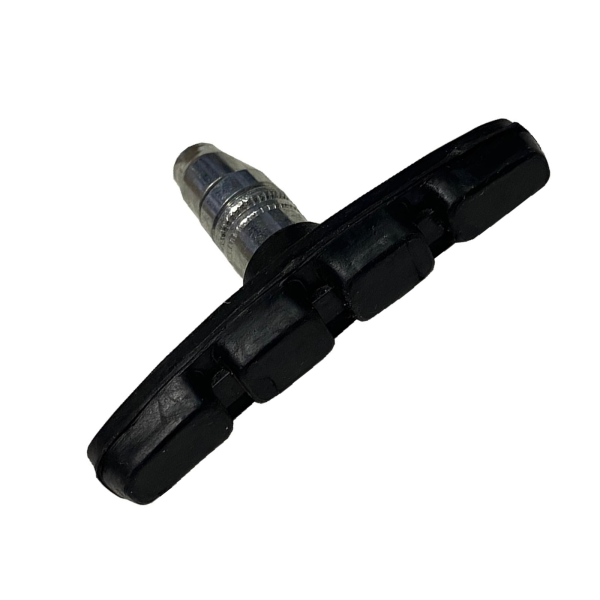

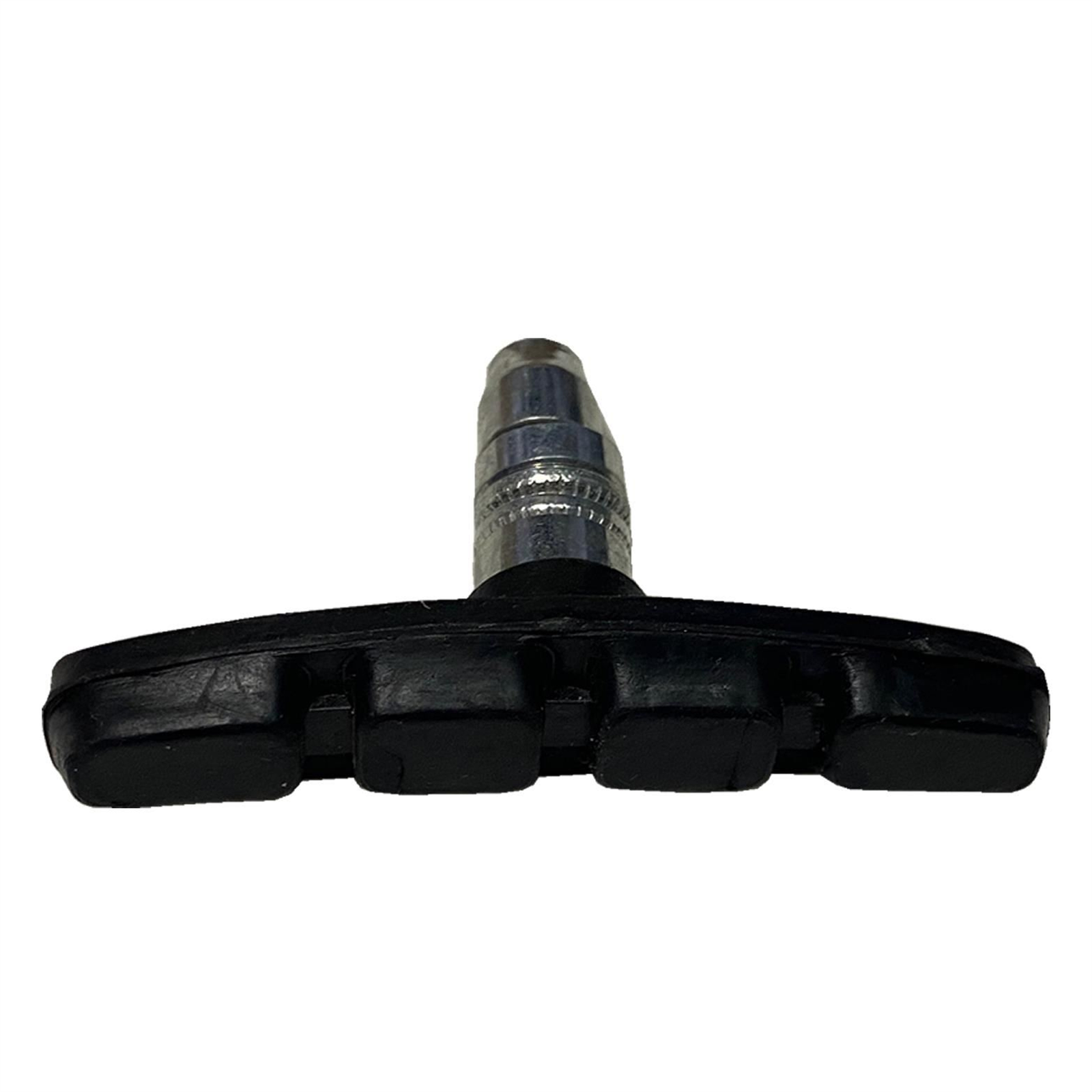

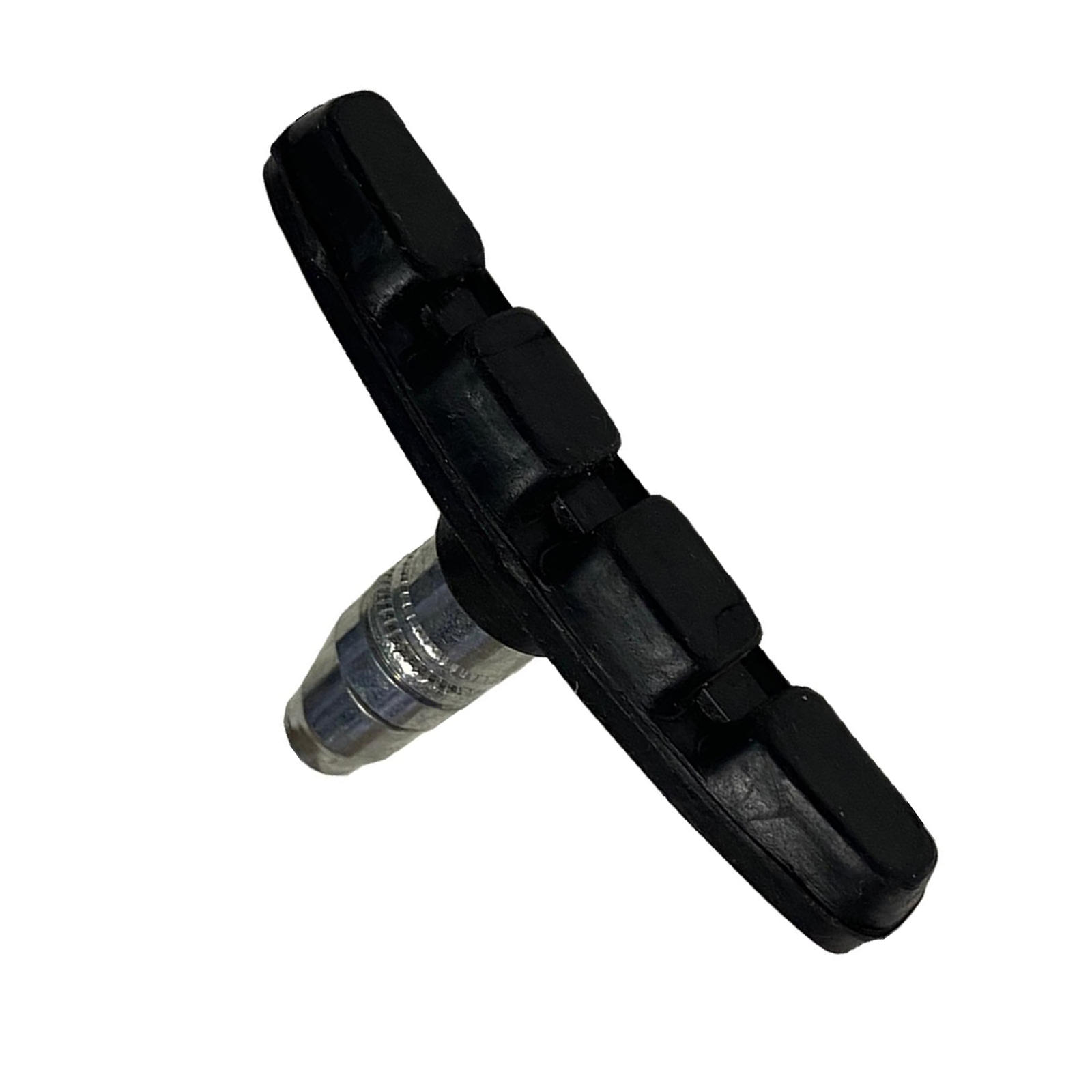

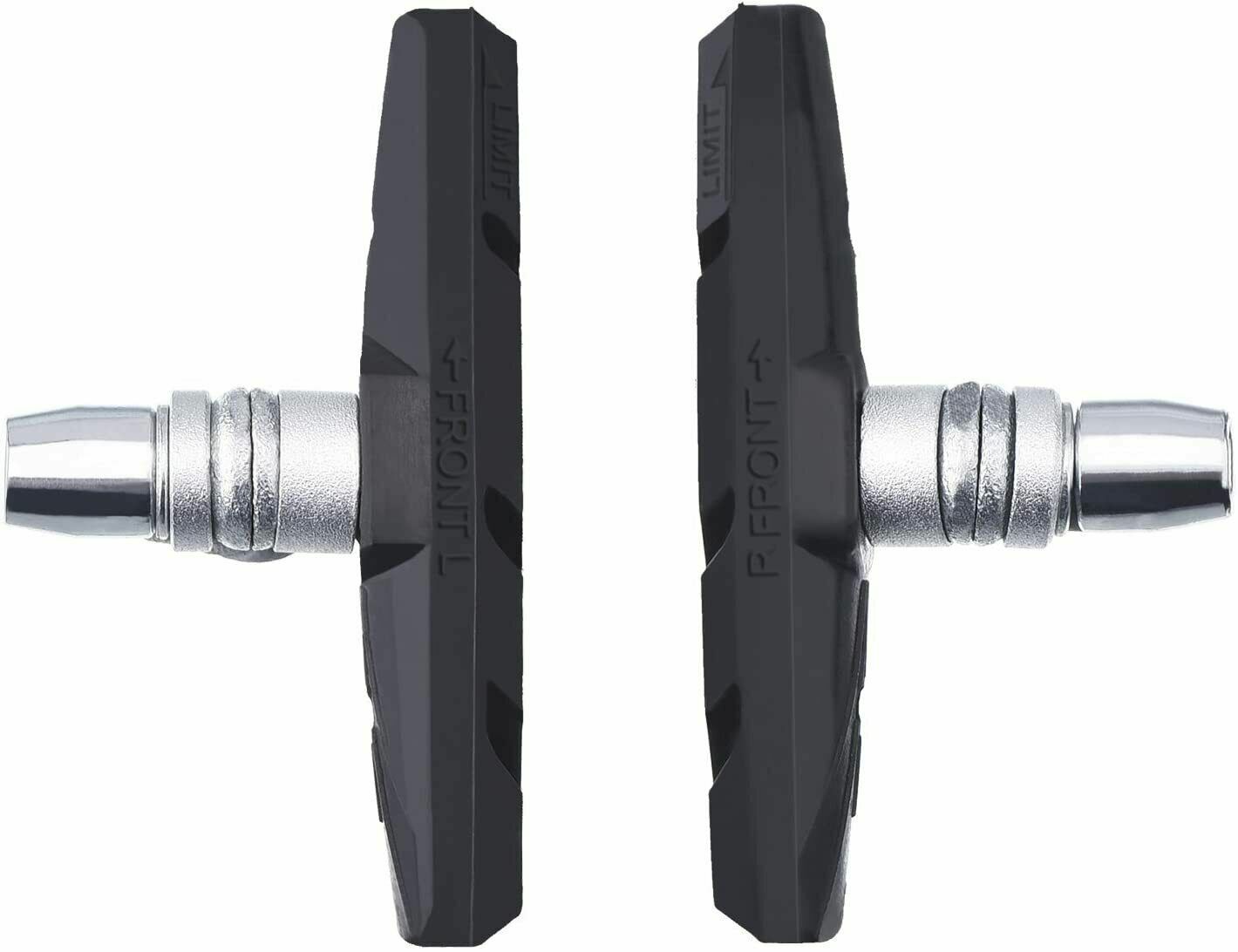

1 Pair V Block Brake Pads For ATB MTB Mountain Bike Bicycle Brake Block Pads

Description

Brake Pads Description:

This style of nutted brake pad is found on most styles of bike including Mountain Bikes, Hybrid Bikes, Tandems, Folding Bikes and Touring Bikes. It is rare that they would be fitted on a Road Bike.
Before this type of pad, you used to have pads with a bare clamping pillar, these were suited to fit older style cantilever brakes.
Fitting and Maintenance:

Product Specification:

. 70mm brake pad length

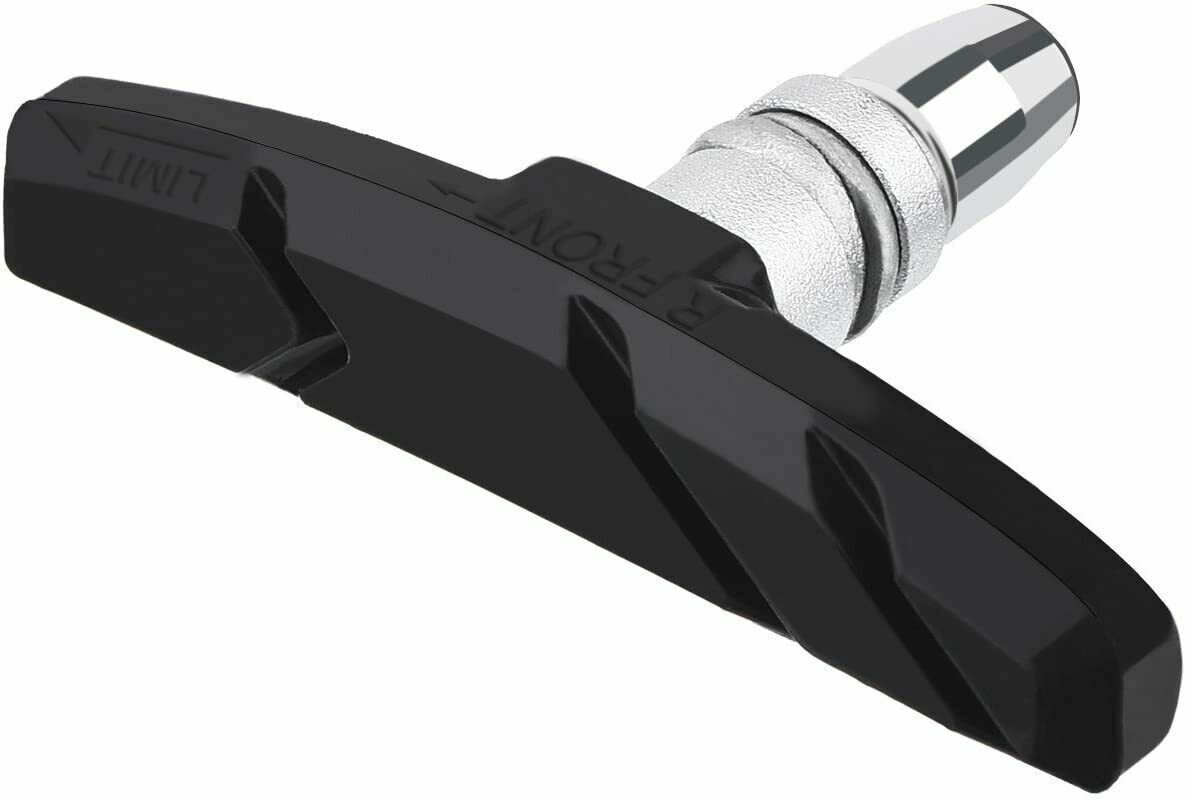

. Wear line indicator
. Quality all weather brake pads

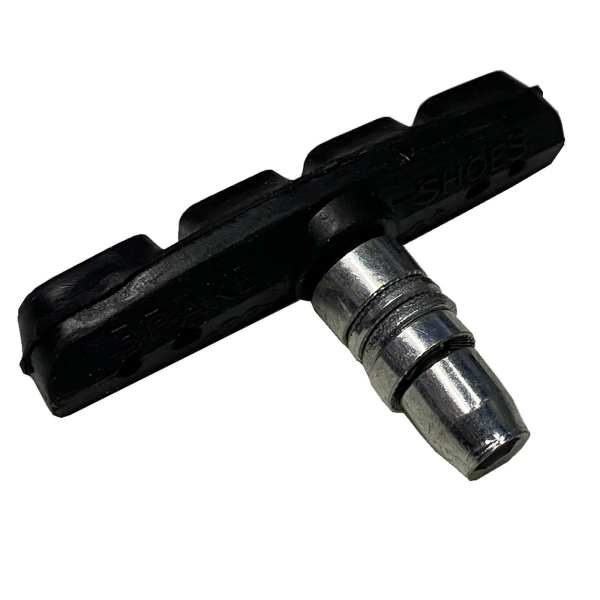

. Threaded and nutted post
. Most found on V Brakes, U Brakes and Linear Pull Brakes.
. Weight: Approx. 70g each Pair

Product Instruction:

First, remove your old brake pads and wipe down the brake components that remain attached to the frame or fork. This can be done with an old rag and a spot of bike cleaning fluid (like Muc Off or Fenwick’s). Also give the rims a wipe down and don’t forget to rinse.
This should remove any old brake dust that has been blasted over your bike every time you pull the brakes on.
Now you can fit your new pads.

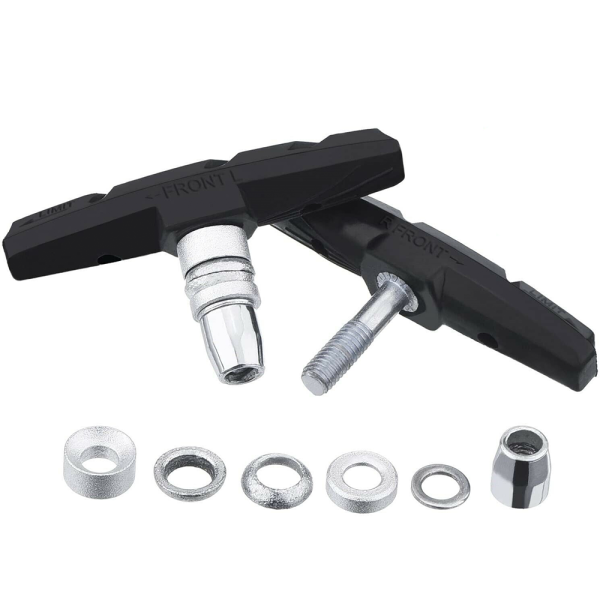

As you will see on the brake pad you have an arrangement of washers, 2 convex and 2 concave. These help to get the pad alignment set up correctly so be sure to have them in the correct order.

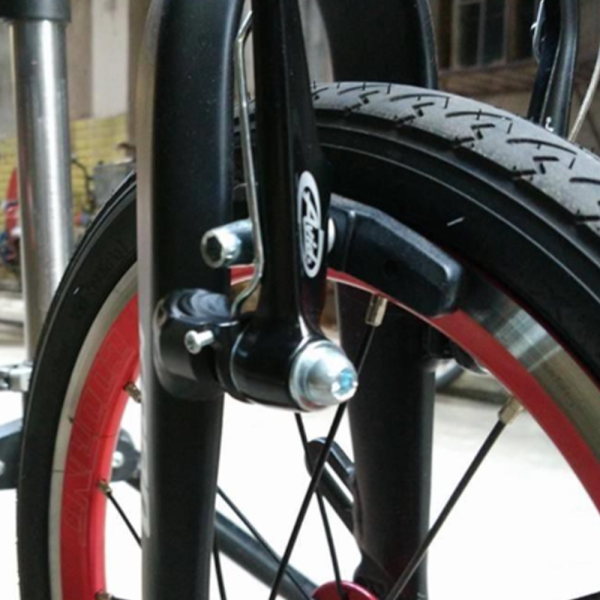

Once you have the brake pads loosely fitted into the brake arm you can start to line up the pad with the rim. It is easier to do this with some tension being taken up by the brake cable so if you are fitting new cables too, I would fit them first.

It is important to get the pad body central on the rim. You do not want the rubber to foul the tyre in any way, nor do you want half of the pad falling off the rim towards the spokes. Both styles of incorrect fitting will age your tyres and pads with un-even wear and even cause a blowout. Both can be quite dangerous.

So, line up the pad in the middle of the rim.
Now repeat this for the other side and then adjust your cable tension to suit how you like the brake to feel. Setting the cable quite tight will require feathering the brake lever for any sort of braking, setting the cable tension so it is more slack will require more pull on the brake lever.

Package Contents:

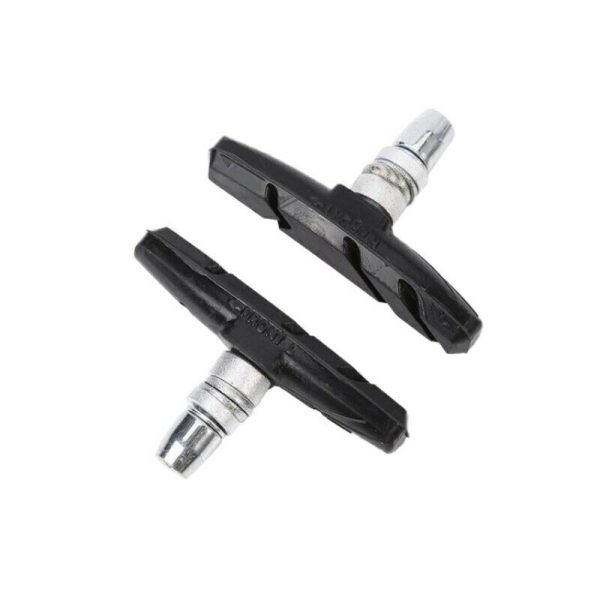

• 1 x Pair(s) V Block Brake Pads
